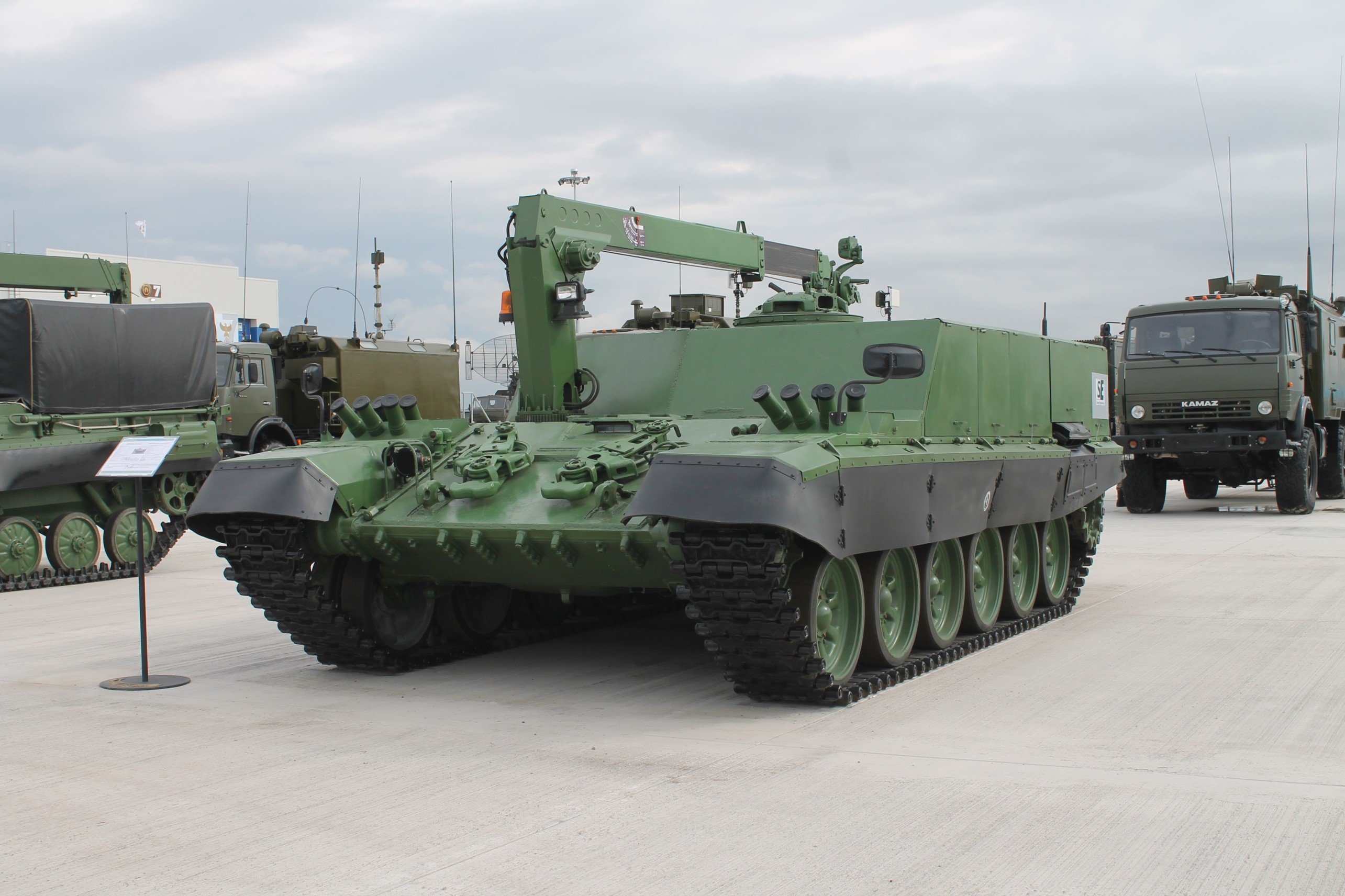

Designed for the evacuation of stuck and damaged armored vehicles, with various types of jamming, towing equipment in various road conditions on tow cables.
Basic technical characteristics:
- Overall dimensions - (Length / width / height, mm) - 7980 / 3460 / 3500;
- Weight with full load, t - 42;
- Crew, people - 3;
- Engine type, - В-84, 840hp;
- Max. speed, km/h - 60;
- Operational range, km - 700;
- Flatbed Truck, capacity, t - 1,5;
- Winch pulling force , t - 25;
- Cable length, m - 100.
Bulldozer:
- Width of blade, m - 3,1;
- Maximum digging depth, m - 0,45;
Lifting means:
- Steerable hydraulic crane, capacity, 3 t;
- Maximum hook height above the ground, m - 5;
- Boom outreach, m - 7,55.
Armament:
- Machine gun - 1x12.7mm NSVT;
- Stand-alone diesel generator with a welding function, voltage 220V to power the working tool;
- Auxiliary winch, - Electric, with a pulling force of 0.5t;
- Masking system, type / pc902B/ 12.
