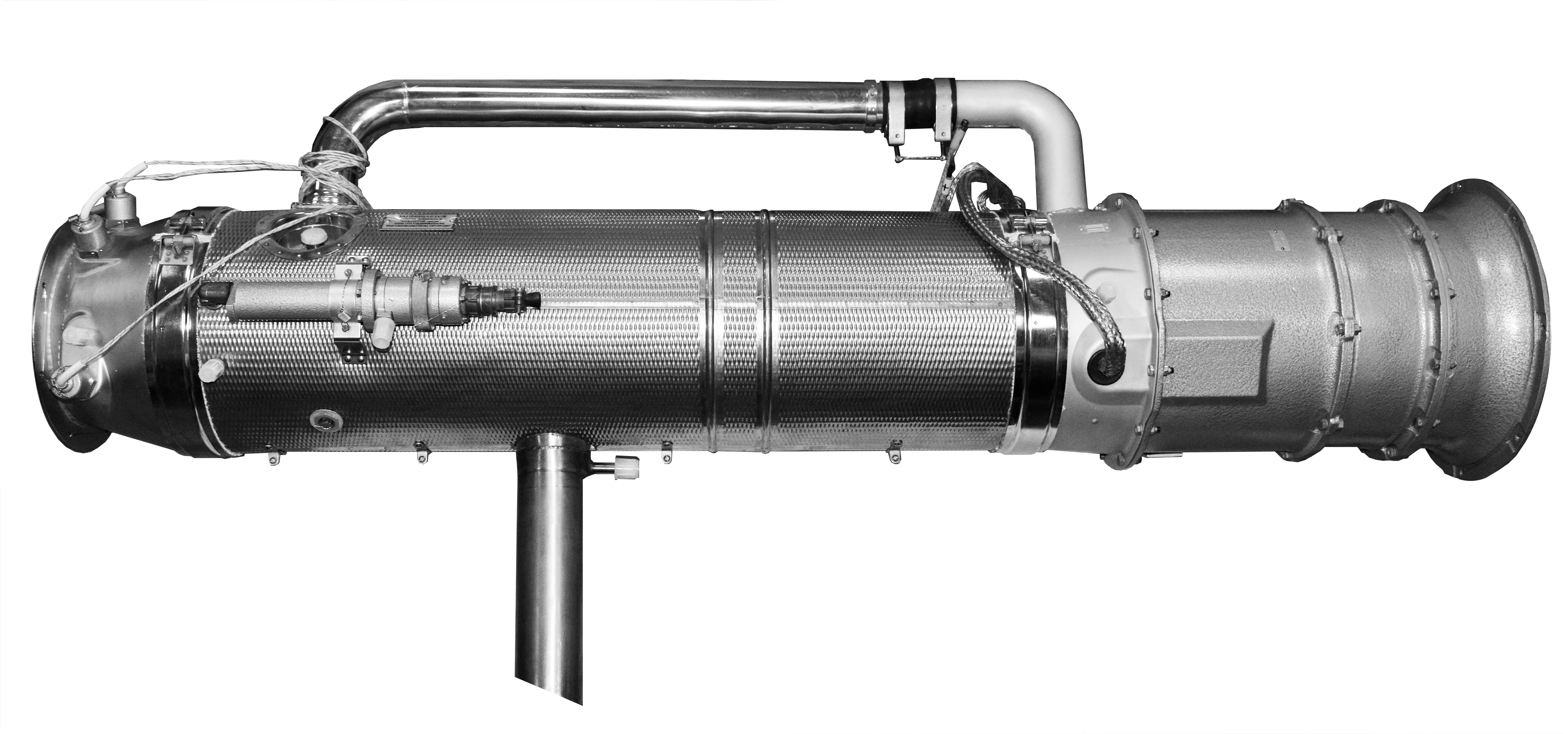

Is used for cabin of the plane or helicopter heating and ventilation. The heater is fixed at planes MI- and its modifications.
|
Nominal heating capacity of the heater on the ground at atmospheric pressure of 760 mm Hg and voltage 27 V |
min 50 000 kcal/h. |
|
The fuel used in the product is T1, RT, TS-1, T-2 |
GOST 10227-86 |
|
Fuel consumption |
max 8.7 kg/h. |
|
The flow of heated air through the heater at a voltage of 27 V, atmospheric pressure 101 kPa (760 mm Hg. and the pressure behind the heater 0.98 kPa (100 mm Hg.) |
max 1760 kg/h. |
|
The electric power consumption of the heater at a voltage of 27 V |
max 2.5 kW. |
|
The weight of the heater with a fan and accessories |
max 47.5 kg. |
