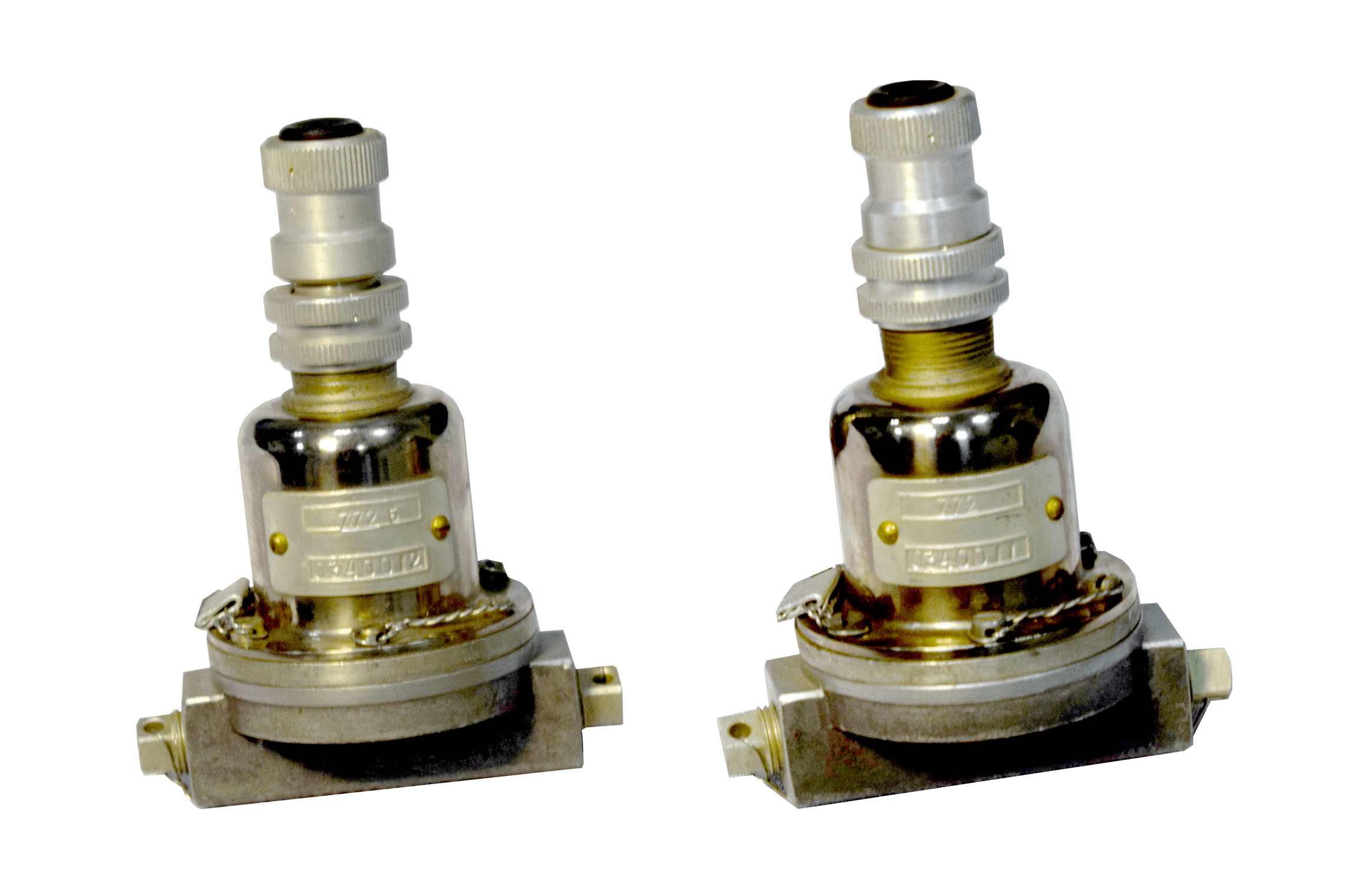

Are designed for fuel or air delivery into aircraft system remote control.
|
Fuel electromagnetic valve |
772 |
|
Air electromagnetic valve 772 V |
772 V |
|
Direct current voltage |
27±2.7V |
|
Current under the voltage of 27V and the temperature of 20ºC |
not more than 0.42A |
|
Incoming 772 working fuel pressure |
0.196 MPa (2 kgs/cm2) |
|
Incoming 772 B working air pressure |
0.00343MPa (0.035 kgs/cm2) |
|
772 workspace |
gasoline B-70, B-91/115 |
|
772 B workspace |
air |
|
Minimum response pressure under incoming: |
|
|
772 pressure 0.196% MPa (2 kgs/cmº) |
|
|
772 B pressure 0.0882MPa (0.92 kgs/cm2) |
not more than 18 kg |
|
Complete product mass |
not more than 0.3 kg |
