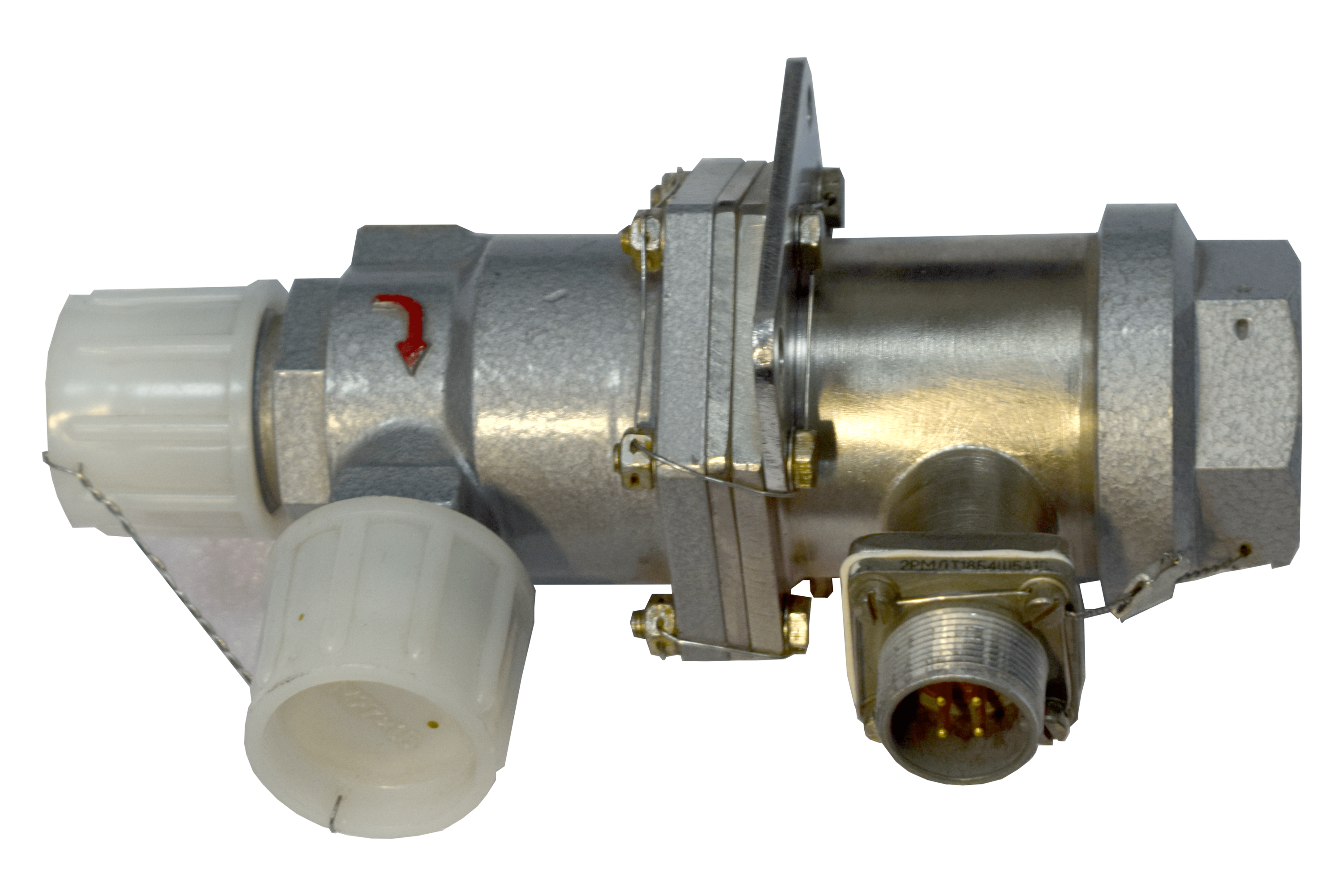

Solenoid valve 4786BT is used for workspace supply main line overlapping. It is used at various aircrafts.
|
Workspace |
antifreeze agent -65, liquid PSM-5, PMS -10, ethyl alcohol, water-alcohol alloy, distilled water, air. |
|
Working incoming pressure |
0.392 MPa (4 kgs/cm2) |
|
Consumption current under the voltage of 27V and the temperature of 20ºC |
not more than 2 A |
|
Workspace temperature: |
|
|
liquid |
from -60 up to +90º |
|
air |
from -60 up to +80ºC |
|
Complete product mass |
not more than 1 kg |
