«SARP» Stabilized Advanced Remote Weapon Platform
«SARP» Stabilized Advanced Remote Weapon Platform
Manufacturer
ТОО «Казахстан Аселсан Инжиниринг»
Description

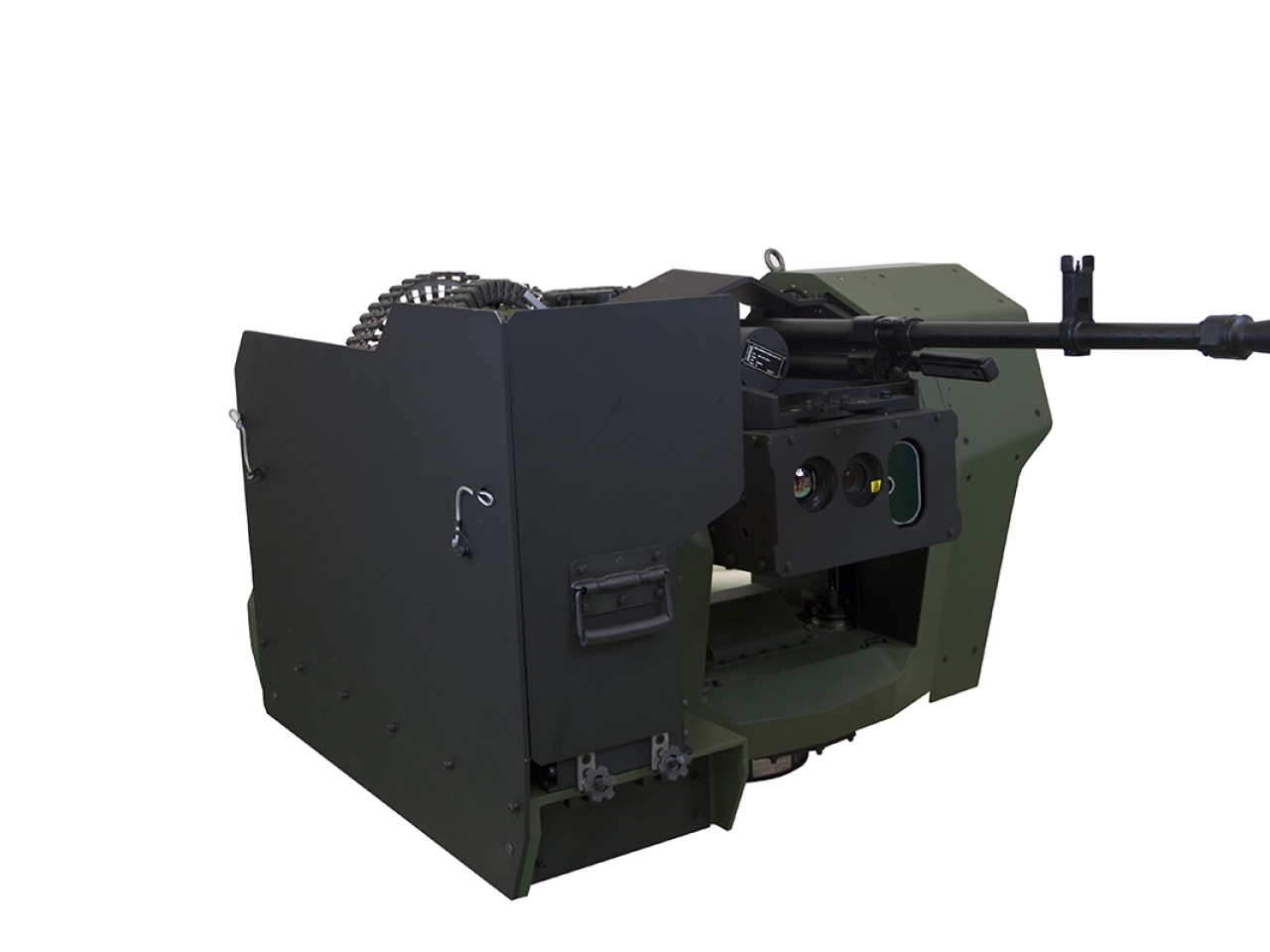

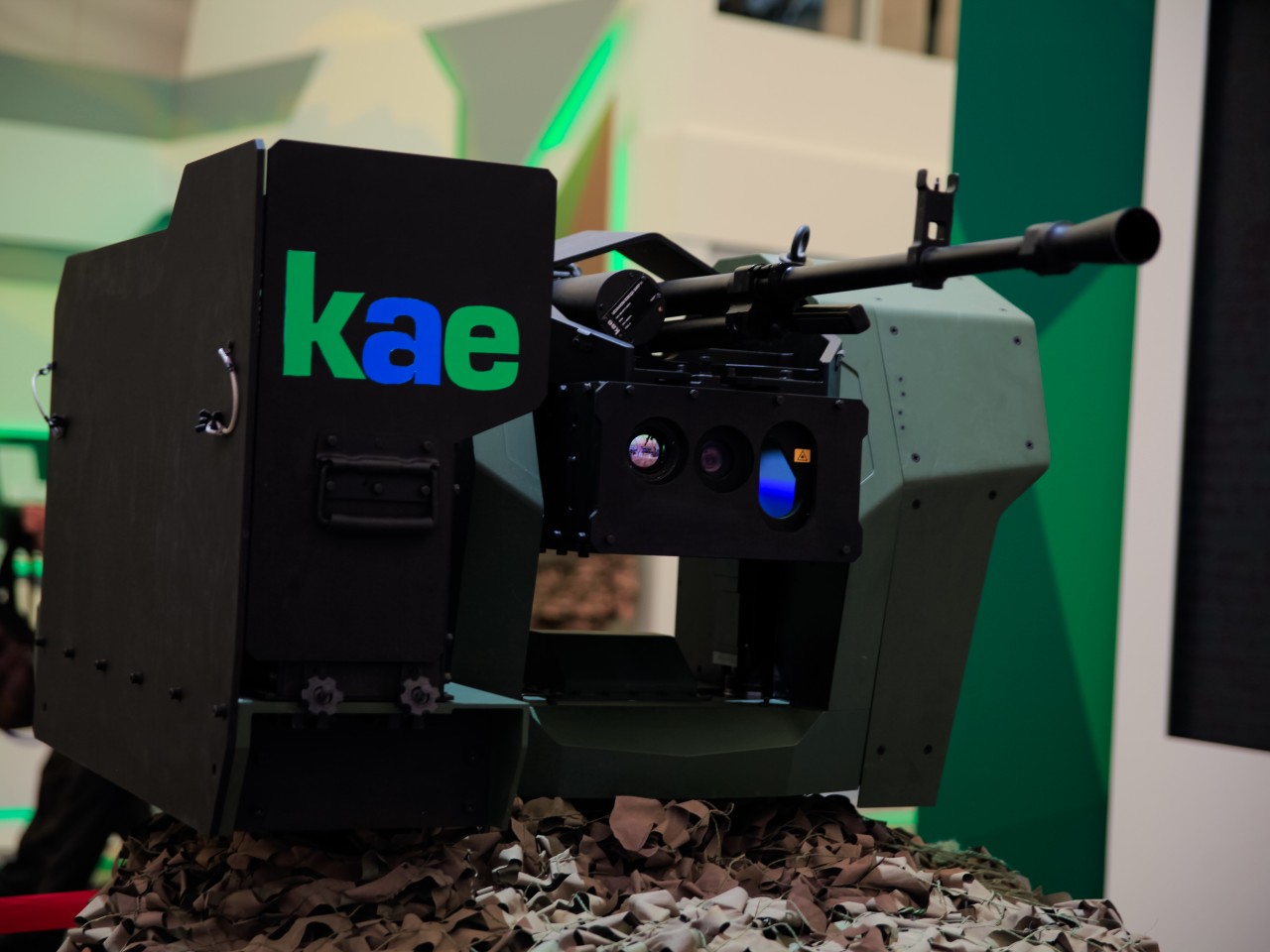

SARP is a remotely operated stabilized weapon platform for 12.7mm NSV machine gun. The platform combines high-precision reconnaissance and engagement capabilities with effective firepower while keeping the operator under armor.

SARP configurations incorporate advanced features, such as remote operation, built-in electro-optic sensor system, day and night operation, automatic target tracking (detect, track and fire on the move) stabilized turret and ballistic computation.

The infrared and daylight TV cameras of the system enable detection and recognition of targets that would not be possible with naked eye. The system is capable of ballistic calculation and automatically tracking the targets and enabling a high hit probability by accurate firings.

SARP System has a stabilized turret which enables the line-of-sight of the gun to be aimed at the target at all times. Due to the stabilization feature, the system can perform precise firings against stationary or moving targets while the platform is on-the-move.

System can be operated remotely by using the remote gun control unit and hence provides gunner protection against counter fire. System has additional features of defining firing zones both in azimuth and elevation.

System has a modular structure enabling easy installation on various naval platforms for the purpose of asymmetric warfare and coastal defense.

Combat Module Advantages Increasing Combatability:

  1. Firing in motion at moving and stationary targets;
  2. High capabilities for observing and tracking the target, conducting targeted shooting in adverse weather conditions, day and night, make it possible to detect the enemy in advance;
  3. Remote control of the combat module minimizes the risks of loss of personnel;
  4. Wide range of applications;
  5. Hydro - Stabilizer;
  6. Laser range finder for the most accurate ballistics
  7. Computer - software for fire control
  8. Ammunition counter
  9. Last Ammunition Warning
  10. The ability to use weapons manually
  11. 400 caliber ammunition 12.7 mm

Technical Specifications

Outer platform < 165 kg (without ammunition, gun and armor)
Inner units < 50 kg
Turret height > 80 cm
Rotation in azimuth axis (with slip ring) 360°
Rotation in elevation axis -20° to +45°
Weapon Options 12.7 mm / 7,62 mm / 40 mm
