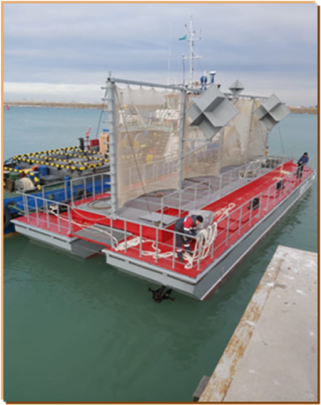

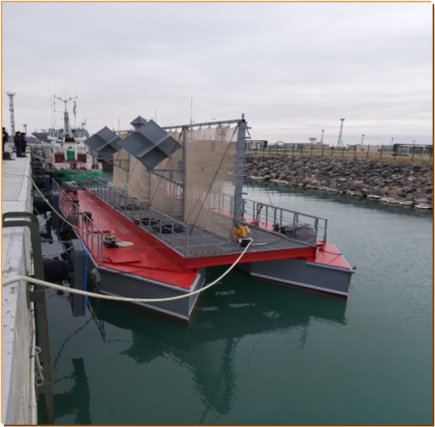

Marine target MKSH consists of 2 pontoons and a mesh field. To improve the maintainability of the mesh target field, it must be made of interchangeable blocks.

To ensure the unsinkability of the pontoons in case of damage, they are divided into compartments by watertight bulkheads and filled with slow-burning polyurethane foam.

To protect against corrosion, the pontoons and the mesh field are painted with paintwork materials.

The MKSH sea target can be used as a towing variant and as a rack-mounted vessel.

Specifications:

• overall length along the hull - 21.3 m
• overall width - 7.5 m
• side height - 1.5 m
• overall height - not less than 6.5 m
• pontoon draft - 0.45 m

Seaworthiness - up to 4 points

The length of the tow rope is at least 100 m

Corner reflectors to simulate ships (vessels) with a displacement of up to 2000 tons - at least 2 pcs .

Depth of delivery to anchor - not less than 30 m
