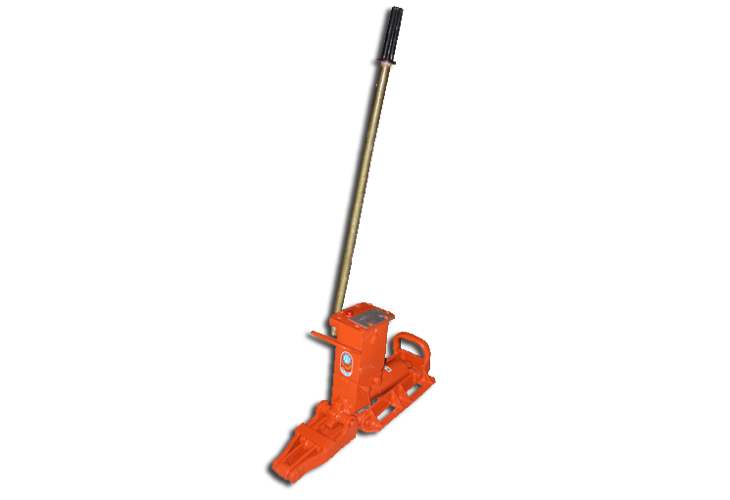

Rail-sleeper grid liner is designed for lining of rail-sleeper grid during railway tracks running service and different types of works.
Technical specifications
|
Maximum working spreading effort, Kn, (t) |
70 (7) |
|
Rod pass, mm, not less than |
90 |
|
Cylinder diameter, mm |
60 |
|
Quantity of pump elements |
2 |
|
Pressure in hydraulic system, MPa (kgf/cm2) |
|
|
- working pressure |
0...26 (0...260) |
|
- maximum pressure |
28 (280) |
|
Working fluid volume, l |
0,6 |
|
Pump handle effort at maximum pressure, N, (kgf), not exceeding |
240 (24) |
|
Weight, kg, not exceeding |
21 |
|
Overall dimensions, mm, not exceeding |
|
|
- length |
535 |
|
- width |
170 |
|
- height (without handle) |
335 |
