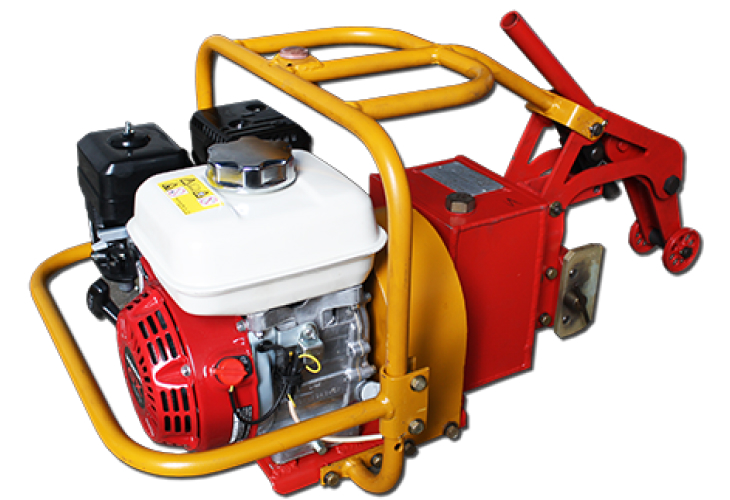

Rail - boring machine is designed for boring of holes for splice bolt in rail web of R75, R65, R50 GOST 24182 type according marking-out.
Technical specifications
|
Engine model |
Honda Gx 120, 1-cylinder, 4-cycle, with horizontal shaft |
|
Cooling |
Forced, air |
|
Maximum torque consumption at 2500 rpm , Nxm |
0,75 |
|
Engine start-up |
Cord with automatic reverse |
|
Fuel |
petrol |
|
Fuel tank capacity, l |
2,5 |
|
Borer type |
Circular, with removable multiplex cutting plates |
|
Spindel rotary speed, rpm |
2500-2700 |
|
Boring pass, mm |
28 |
|
Maximum boring diameter, mm |
22; 36 |
|
Borer feed |
automatic |
|
Overall dimensions, mm, not exceeding: - length - width - height |
1100 485 420 |
|
Weight without fuel, kg, not exceeding |
48 |
