Purpose:
Repair of oil & gas wells.
Operations performed:
- mobile moving from well to well;
- assembly and disassembly of control head equipment;
- round trip including those with sucker rods and tubing;
- accident elimination.
Design features:
- single-drum winch with one single-disc pneumatic friction clutch;
- upper section of derrick is moved up by hydraulic winch from the remote control console;
- device for fixing hook block and protection of the derrick from damage when moving the rig;
- double-action hydraulic jacks for leveling the rig.
Technical specifications
|
Rated load ob hook, kN (tf) |
392 (40) |
|
Maximum allowable load on hook, kN (tf) |
490,5 (50) |
|

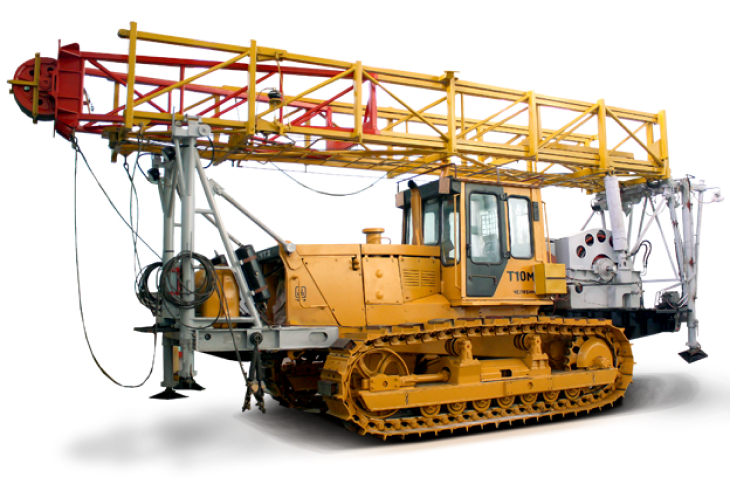

Assembly-transportation base of the rig: |
|
|
- tractor |
Т-10М, Т10МB (swamp) |
|
Machinery drive |
From tractor engine |
|
Winch: |
Single drum with disc pneumatic clutch |
| - number of gears |
4, reverse - 2 |
|
- maximum traction force, kN (tf) |
83,4 (8,5) |
|
- hook block lifting speed, m/s |
0,2…1,18 |
|
- winch brake |
Double-belt-spot-type with pedal pneu-matic and manual mechanical control |
|
Derrick: |
Double-section, telescopic with open front face |
| - height from earth level to crown block axis, m |
18 |
|
- derrick inclination angle, deg. |
4 ° 50' |
|
- distance from the plane of trailing feet to hole axis, mm |
1400 |
|
Hook block lifting height, m |
14 |
|
Hook block: |
Single-axle with triplex hook |
|
Overload capacity: |
|
|
- mechanical |
For switching-off the winch and switch-ing-on the brakes on overloading |
|
Protector (limiter of hook block lift) |
Electropneumatic |
|
Hydraulic system: |
|
|
- number of pumps |
1 |
|
- working pressures range, MPa |
16-21 |
|
Leveling jacks - number of items, pcs. |
4 |
|
Pneumatic system: |
Power supply from compressor driven by tractor engine |
|
- working pressure, (kgf/cm2) |
7 |
|
Illumination of derrick, rig equipment and working places: |
Explosion-proof construction, from on-board net of the tractor |
|
Rig overall dimensions in transit condition, mm |
10080x2800x4400 |
|
Weight in transit condition, kg |
26000 |
|
Options – supplementary equipment supplied on demand in complete set with lifting rig |
|
|
Wrench APR-2GP: |
|
|
-drive |
hydraulic |
|
-working range – tube diameters, mm |
48, 60, 73, 89 |
|
-maximum torque, kN•m (kgf•m) |
3(300) |
Lifting rig complies with the requirements of Safety Regulations in oil and gas industries, set in the Republic of Kazakhstan, ST АО 30482858-013-2008, as well as the requirements set by GOST 12.2.088-83, GOST 12.2.125-91, GOST 4938-78, GOST 28113-89.
