Purpose:

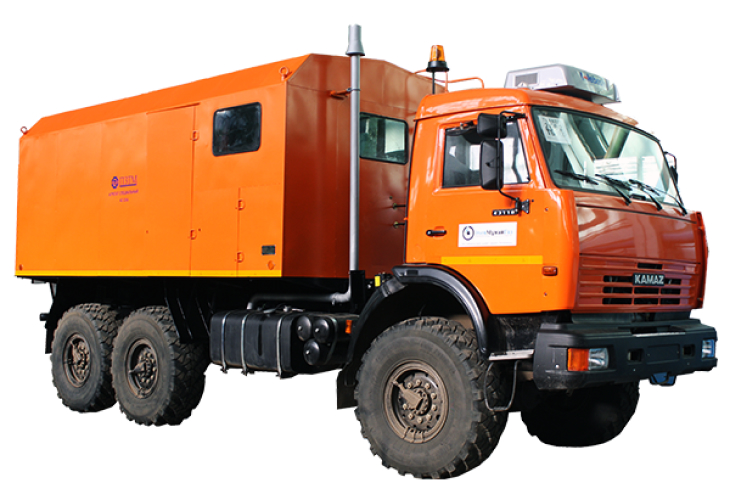

The truck is designed for dewaxing of wellbottom zone, pipe lines, tanks, fittings and other oil field equipment by high pressure saturated steam.
Operations performed:
- mobile moving from well to well;
- dewaxing of wellbottom zone;
- washing of pipelines, reservoirs, and various oil field equipment.
Design features:
- Possibility of manufacturing the truck on Ural, KrAZ, KAMAZ chassis with pump 2.3PT25.
Technical specifications
|
Chassis mounting base |
KAMAZ 53228/43118 KrAZ 65053 Ural 4320 |
|
Steam production capacity, kg/h |
500-1600 |
|
Steam temperature, С |
175 - 310 |
|
Steam pressure, MPa (kgf/cm2) |
0,78(8) - 9,8 (100) |
|
Time required for steam production from the moment of starting the boiler, min |
20 |
|
Water tank capacity, m3 |
5,2 |
|
Overall dimensions, mm |
|
|
length |
9100 |
|
width |
2500 |
|
height |
3700 |
|
Total weight of the rig, kg |
20400 |
|
Truck complies with safety requirements of RoK & RF, ST АО 30482858-023-2009 and has compliance certificates and appliance permit . |
|
