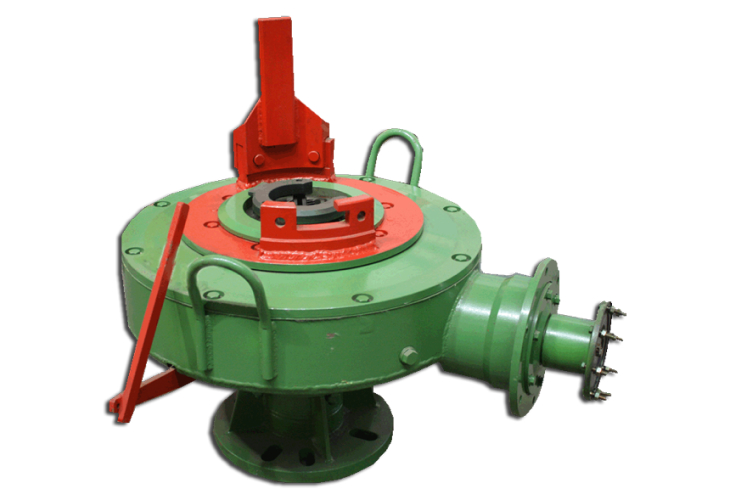

Purpose: Mechanical drive rotor 9UPA.51.00.000 is designed for drilling operations (cementing plug drilling out), for mechanical screwing and loosening of oil-well tubes and also for pipe string re-tention.
Technical specifications
Drive	Mechanical
Table opening, mm	142
Load capacity, tons, not less	500 (50)
Table rotations per minute, not exceeding	160
Max. torque consumption, N |m	12000
Guide well tube square side, mm	80
Slip hanger lifting	Manual, lever
Slip hanger for tubes with diameter, mm	60,73,89,102, 114
Rotor weight, kg	750
