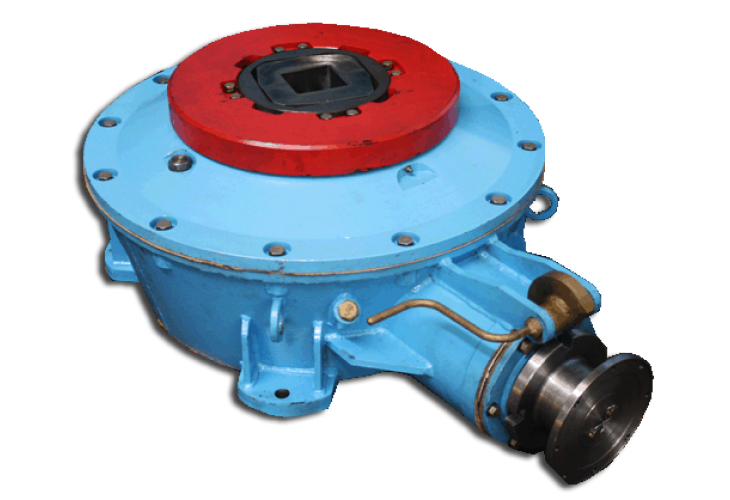

Purpose: Rotor R250 is designed for drilling instrument rotation during drilling operations and well overhaul and also for retention of pipe string which is locating on elevator.
Technical specifications
Drive	Mechanical
Table opening, mm	250
Allowed load for rotary table (when locking device is on), kN, (tf)	785 (76,48)
Table rotation speed, rpm not exceeding	146
Allowable transmission capacity, kW	150
Guide well tube square side, mm	80
Rotor weight, kg	518
Overall dimensions, mm
length	1052
width	770
height	383
