Purpose:

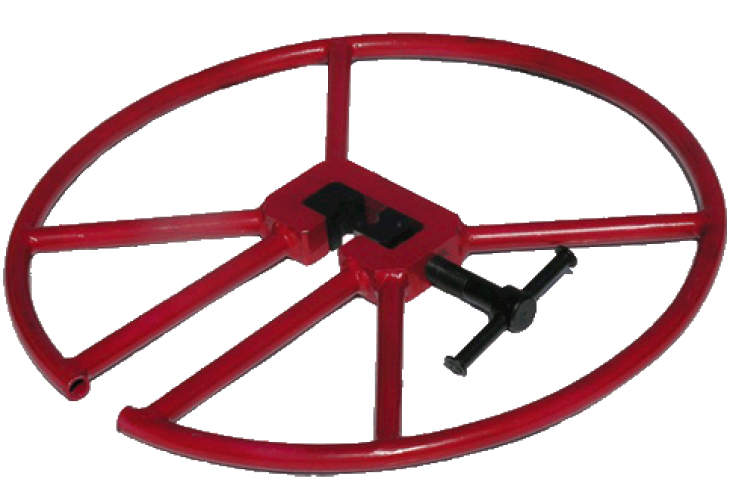

Circular lowering iron KShK is designed for unscrewing of rods by fastened pump piston.
Technical specifications
|
Rod diameter, mm |
12, 16, 19, 22, 25 |
||
|
Outline diameter of lowering iron, mm |
550 |
||
|
Weight, kg |
6,8 |
|
Purpose: KShR tongs are designed for spinning-up and uncoupling of threaded joints on sucker rods with nominal diameters: 16, 19, 22 and 25 mm. |
|||
|
Technical specifications |
|||
|
KShR.000 |
KShR.000-01 |
KShR.000-02 |
|
|
Sucker rod nominal diameter, mm |
16 |
19, 22 |
25 |
|
Maximum torque, kN∙m, not exceeding |
1,0 |
1,0 |
1,0 |
|
Overall dimensions, mm |
490х106х30 |
710х106х33 |
710х106х38 |
|
Weight, kg |
3,1 |
4,65 |
4,7 |
