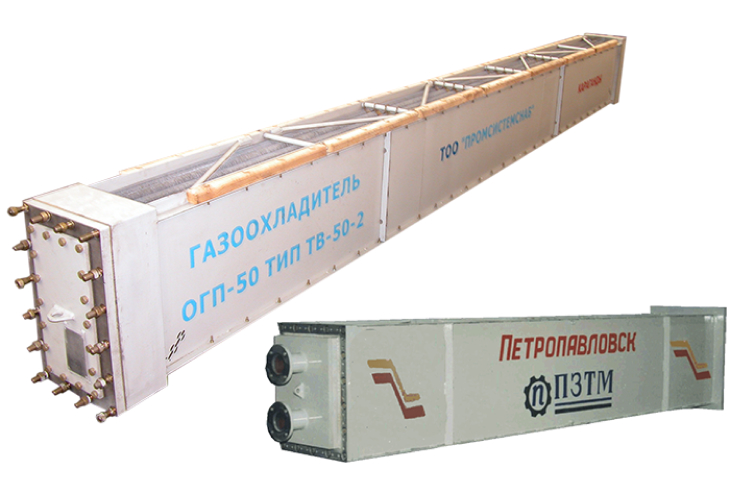

Gas coolers and air coolers are designed for cooling of generator and turbine spinners. Coolers has been manufactured in accordance with RoK technical regulations "Pressure equipment safety requirements", "Pressure vessels safety operation requirements" issued 2008.10.29 and design documentation. |
|
|
Material: |
|
| Tubes – steel 20, brass, copper | |
| Finning – aluminium ad1 | |
| Chamnbers, sides – high quality carbon structural steel, ordinary steel | |
|
Technical specifications: |
|
| Conditional pressure, kgf/cm2 | up to 63 |
| Temperature, °C | from – 40 up + 450 |
| Tube length, m | up to 12 |
| Weight, t | up to 10 |
Gas- & air coolers
Manufacturer
АО «Петропавловский завод тяжелого машиностроения»
