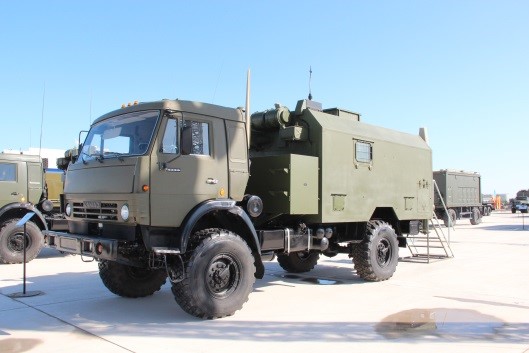

The radio medium power "Karagay" HF is designed to provide duplex or simplex communication channels, radio or radionapravlenii.
Main characteristics
- automatic selection of the best frequency in the process of communication, taking into account the technical conditions of radio wave propagation and signal interference environment;
- multiparameter adaptation to the radio propagation conditions and signal-interference conditions (frequency, transmission rate ranging from 300 to 9600 bit / s, and the mean signal code construction, the code rate);
- guaranteed accuracy of data transmission;
- possibility of automatic transfer of text information, the keypad control PC via firmware Morse code sensor;
- radio in the HF and VHF bands like the parking lot, and on the move;
- radio stations with homogeneous "Pierce", "Barys", and also with radio old park, at fixed frequencies and free from interference in similar modes of operation;
- automatic maintenance of electronic hardware log in real time with the ability to display information on a display screen and a removable data storage device;
- automatic control performance channelization means (transmitter and receiver) included in the apparatus, with the map on the display screen of the PC;
- synchronized radio via satellite GPS / GLONASS system or the network signals the exact time (data transfer mode).
|
Frequency range:
|
1.5 29.99999 ... 0.4 29.99999 ... |
|
Installation decimal frequency increments, Hz |
ten |
|
Frequency accuracy:
|
± 1 × 10 -7 ± 2 × 10 -8 |
|
adjustment time prepared frequencies less ms |
60 |
|
The number of programmable channels radios |
100 |
|
modes of work |
simplex, duplex |
|
Transmission characteristics |
|
|
The output power at a load on the feeder with asymmetrical impedance of 50 ohms, Vt |
1000 |
|
classes of emission |
J3E, F1B, A1A |
|
RPDU time setting an arbitrary frequency - no more, with |
5 |
|
gradation power |
25, 50, 100% |
|
Control:
|
by RS-232C interface; Front panel |
|
The nominal data rate, bit / s |
300 ... 9600 |
|
Features reception |
|
|
Impedance, ohms. |
50 |
|
The device provides the following classes of signal reception radiation: |
- J3E with passbands 2350 and 3100 Hz; - A1A with a bandwidth of 600 Hz; - F1B shear rate of 170 Hz and a 100 bauds wiring; - F1B shear rate of 500 Hz and a wiring 50, 100 and 200 baud. |
|
Details of the exchange of information in an automatic adaptive mode: |
|
|
The number of correspondents in a radio network |
32 |
|
Minimum time of drawing up the communication channel no more with. |
fourteen |
|
The nature of the transmitted information: text messaging; files. |
|
|
Synchronization products provided through satellite system GLONASS / GPS or Network exact time stations. |
|
VHF communications
Designed for connection in a convoy
|
frequency range, MHz |
30 ... 87.975 |
|
grid kHz step |
25 |
|
transmitter power, W |
5 |
|
supply voltage, V |
24 |
|
Operating temperature range |
no worse than -30 ° C to + 60 ° C |
|
antenna type |
whip |
|
additional functions |
built-in scrambler (encoder speech) |
HF communications
Designed for autonomous operation in the HF band in open communication mode may also be used to alert the network in reception and standby for intercom communication with the hardware and other units.
|
bandwidth, MHz |
1.5 29.99999 ... |
|
modes of work |
simplex |
|
signal light reception classes |
J3E (USB, LSB), A2A |
|
rated power in the transmission mode, W |
125 |
|
antenna type |
whip |
|
voltage DC power supply, V |
24 |
Autonomous power
Power station from the AC voltage source 380 phase voltage frequency of 50 Hz. Power consumption up to 6 kW. An autonomous power source is a diesel engine. There are stations powered by an external AC power.
Life supporting system
The transceiver is equipped with a fan heater, power not less than 2 kW, the heating system (heating) RH-65, a filtering unit FVUA air conditioning system.
Service and warranty
The plant provides warranty service during the years of operation, after the acceptance of the product. There is a possibility of training of customer's specialists to the rules and methods of operation of the equipment. If necessary, there is a possibility of organizing a service center on-site maintenance of Customer Equipment.
On request to change the composition of the equipment, do not affect the basic performance characteristics of the product.
