Purpose:

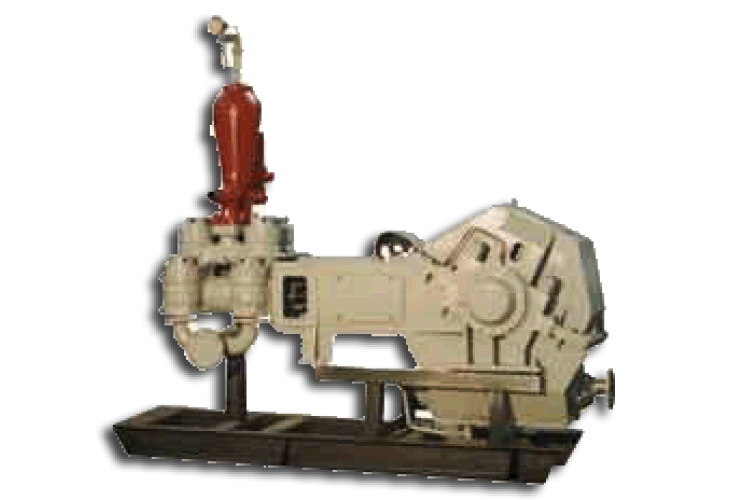

Cementing pump 9ТМ is designed for injection of different flow mediums (cement and mud solutions, and other fluids) during well cementation while boring and overhaul, and performing other flushing-squeezing works in oil and gas wells.
Technical specifications:
|
Useful power, kW |
108 |
|
Piston stroke, mm |
250 |
|
Globoidal gear ratio |
20,5 |
|
Diameter of changeable barrels and pistons, mm |
100, 115, 127 |
|
Pipes passage diameter, DP, mm |
|
|
- suction line |
100 |
|
- pressure line |
50 |
|
Maximum pressure, MPa (For piston: Ø100 mm, Ø 115 mm, Ø 127 mm) |
32...20...18,6 |
|
Maximum pump delivery, dm3/s (For piston: Ø 100 mm, Ø 115 mm, Ø 127 mm) |
14...19... 23 |
|
Weight, kg |
2600 |
