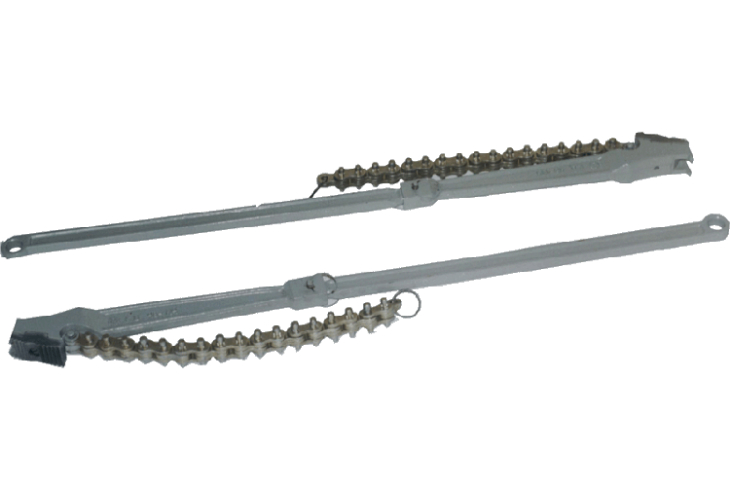

Purpose: Wrenches KTs are designed for manual spinning-up and uncoupling of joints of oil grade tubes.
Supply set consists of: 1. Assembled wrench – 1 piece;  2. Spare anvil – 1 piece. Only wrench 1KTs is completed with spare anvil.
Technical specifications
	KTs	KTsO-1	KTsN -1	KTsN1-01
Nominal diameter of spinned-up and uncoupled tubes, mm	48-114	60-114	60-114	60-245
Maximum torque, kN/m	1,0	1,1	1,1	2,9
Maximum allowed load on arm end with lengthening bar, kg	98	166	95	116
Weight of assembled wrench, not exceeding, kg	6,2	10	14	18
Overall dimensions, mm: Length with lengthening bar/ without lengthening bar	1040/540	660	1160	1160
Width	66	110	110	110
Height	46	110	110	110
Chain length	484	667	667	1345
