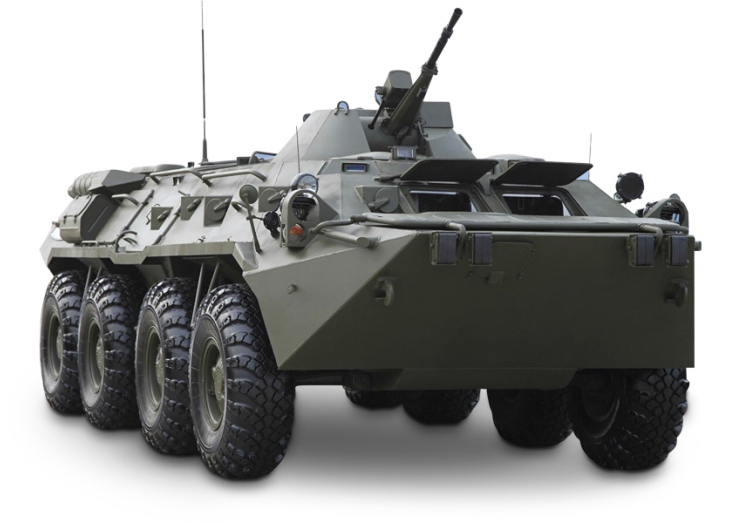

Major overhaul and modernization of the BTR-80
Major overhaul and modernization of the BTR-80
Manufacturer
АО «Семей инжиниринг»
Description

After being commissioned in 1986,the main focus of the plant was on repairing the BTR-60 and BTR-70. Later the plant mastered the overhaul of BTR-80. At present, the BTR-80 is modernized by means of installing modern digital communications.

Technical characteristics:

  • Fighting weight, 13,6t;
  • Crew, people 3.

Dimensions:

  • Length, 7650mm;
  • Width, 2900mm;
  • Height, 2520mm;
  • Clearance, 475mm;
  • Firing distance, km 1, 2 (KPVT), 1, 5 (PKT);
  • Sights 1PZ-2;
  • Machine guns: 1x14,5-mm KPVT, 1x7,62-mm PKT;
  • Engine type KAMAZ 7403;
  • Power, 260hp;
  • Highway speed, 80 km/h;
  • Speed over rough terrain 20 km/h, 40 km/h on soil 9 km/h afloat;
  • Operational range, 600km;
  • Power to weight, hp/t 19,1;
  • Gradeability, 30 degrees;
  • Overcoming wall, 0,5m;
  • Overcoming moat, 2m;
  • Wading depth m, floats.
